ZEsarUX

Version
12.0
Mise à jour
Formule Homebrew
brew install --cask zesarux

Avec son acronyme signifiant "ZX Second-Emulator And Released for UniX", cet émulateur vise à supporter les machines Sinclair ZX ainsi que d'autres :

  • MK14
  • ZX80
  • ZX81
  • ZX Spectrum
  • QL
  • Z88
  • Microdigital TK80, TK82, TK82C, TK83, TK85, TK90X (Portuguese and Spanish), TK95 (Portuguese and Spanish)
  • Timex Sinclair 1000, 1500, 2068
  • Timex Computer 2048, 2068
  • Inves Spectrum +
  • Sam Coupe
  • Pentagon
  • Chloe 140 SE, 280 SE
  • Chrome
  • Prism
  • ZX-Uno
  • ZX-Evolution BaseConf (beta)
  • ZX-Evolution TS-Conf
  • ZX Spectrum Next
  • Jupiter Ace
  • Amstrad CPC 464, CPC 4128, CPC 664, CPC 6128
  • Amstrad PCW 8256, PCW 8512
  • MSX1
  • Spectravideo 318/328
  • Colecovision
  • Sega SG1000
  • Sega Master System

C'est le seul émulateur existant de Chloe 140/280, Prism et Chrome.

Les sources sont disponibles, mais la version compilée demande d'avoir macOS Mountain Lion minimum.

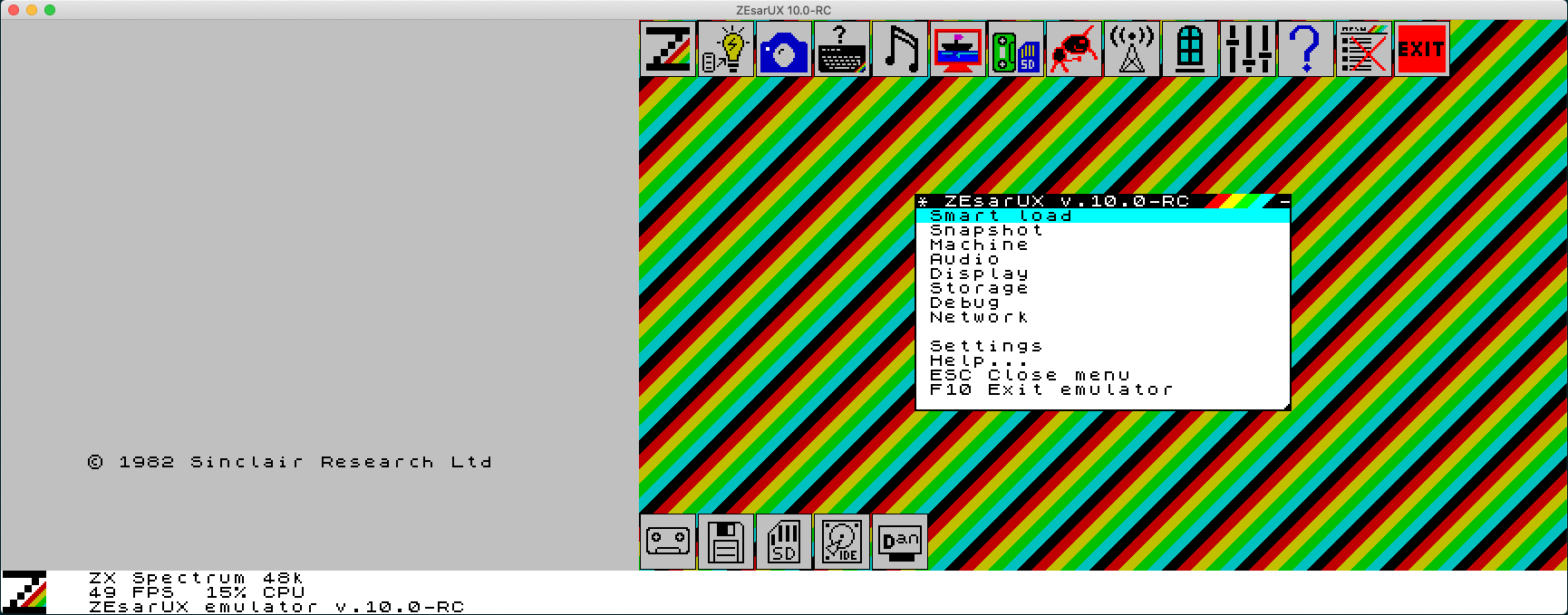

ZXdesktop dans ZEsarUX

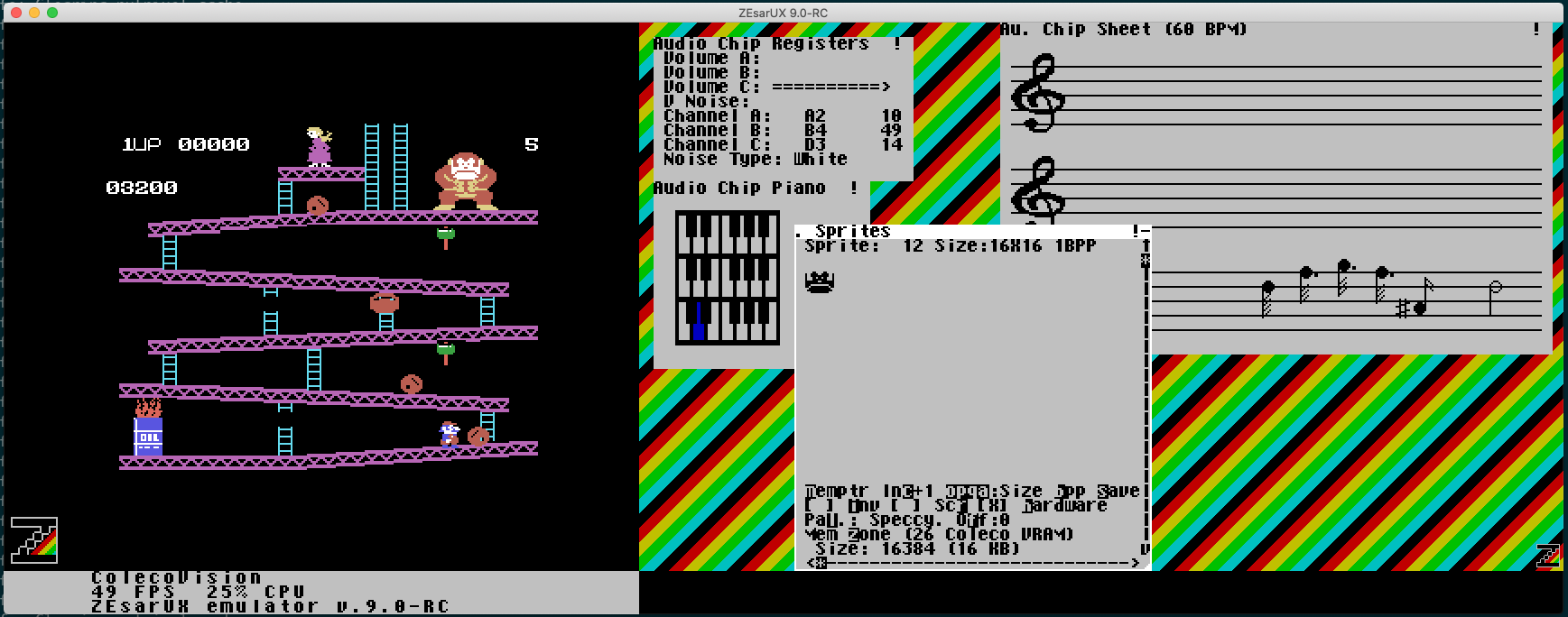

La Colecovision dans ZEsarUX

Changelog

Changelog

12.0

  • New things added:

Added ZX Microdrive emulation on ZX Spectrum: that includes:

  • Standard MDR emulation. Allow to browse inside MDR files, see file map, fragmentation, rename files, sectors info, chkdsk and emulate bad sectors
  • Raw microdrive emulation. Supporting other non-interface1 rom file formats, like extending microdrive space with Multiface 128 or CP/M for LEC memory. Allow to see microdrive raw map (gap zones, sync bytes, data) and have "real problems", like autogenerate bad sectors or stretching the microdrive when it's new.
  • Simulate data sound on read and write
  • Visual Microdrive: Allow to see a microdrive cartridge in action

Added Visual Cassette Tape window
Added LEC memory extension emulation
Added machines Czerweny CZ 1000, CZ 1500, CZ 1000 Plus, CZ 1500 Plus, CZ 2000, CZ Spectrum, CZ Spectrum Plus
Added Memory Cheat feature: useful to find counters of energy, bombs, ammo or any other cheat in a game
Added Find text string on memory menu
Added Quicksave screen function
Added setting to disable persistent writes on Z88 Cards
Added CPC Additional ROMS emulation
Added setting "--simplemenus" to have a very simple main menu

  • Improvements:

Allow save screen to bmp for most machines
Allow hotswap to Pentagon and to Spectrum +3
Allow hotswap from Spectrum 128 to Spectrum +3
Allow to load .SP snapshots of 64kb (like Shadow of Unicorn)
Improve Azimuth warning on External Audio Source Window
Added SDHC cards addressing support
Added Flash Color mode (128 colors)
Allow to not save snapshot when exiting ZEsarUX
Allow to load an additional config file .zesaruxdevrc
Allow to define Left Alt, Left Ctrl, Left Shift or TAB as Joystick Fire action
Allow to change current tape read position on Input Tape Viewer for .tap files
Allow loading a 8kb rom in ZX80 (for example the ZX81 rom, like an upgraded ZX80 to ZX81)
Allow magnify sprites on View Sprites
Added Sphere Meter Type to View Sensors
Improve compilation: settings --enable-memptr --enable-visualmem --enable-cpustats are enabled by default on ./configure
Improved Inves Spectrum+ emulation: alert when a game may crash due to the Inves write-on-interrupt bug
Improved Spectrum Z80 CPU emulation core: add wait state (needed to emulate microdrive)
Improved PCW emulation: add mode 3 (360x256x16), allow videomode changes by i/o port
Improved Sega Master System emulation: allow to swap controls player 1 <-> player 2
Improved ZSF snapshot: save Datagear DMA state
Improved ZX Recreated keyboard support: allow to use it also on menu
Allow saving .Z80 TC2048, TC2068, TS2068 snapshots. Allow loading .Z80 TC2048, TC2068 snapshots

Improved Spectrum Next emulation (the following allows, for example, run Atic Atac version for Next):

  • Added Layer modes 6 and 7 (blend modes)
  • Added stackless NMI
  • Added DAC Channels A,B,C,D
  • Allow tiles on RAM 7
  • Improve display render when only ula enabled (6% less cpu on my computer)
  • Fixed 128k/+2a/Pentagon timings
  • Fixed DIVMMC mapping after RETN
  • Fixed Copper timings
  • Fixed esxdos handler call DISK_FILEMAP
  • Fixed esxdos handler changing local directory when a .nex snapshot is loaded
  • Fixed palette offset for layer 2
  • Fixed ULA layer horizontal scroll
  • Fixed sprite clipping on left and top border
  • Fixed Tile wrapping at 16k/8k
  • Fixed DMA burst mode when prescaler=0
  • Fixed DMA Transfer restarting the byte count at the end of a transfer
  • Fixed cpu speed when opening tape file

Improved Hilow Datadrive emulation:

  • Added Raw emulation, like the real device
  • Allow ddh variable size (from 3 up to 256 sectors)
  • Allow to format only one side on ddh files
  • Allow to clear contents when formatting ("c/borrado" or "s/borrado") on ddh files

Improved Debug:

  • CPU history: allow to change memory pointer to the PC register show in history
  • CPU history: allow to see full history
  • Show when CPU is in wait state
  • Dissassemble numeric parameters on Z80N (Z80 Spectrum Next) opcodes (NEXTREG NN,A, TEST N, etc)
  • Added breakpoint action save-binary
  • Allow to enable/disable breakpoint at an adress (not just enable/remove), using key 'L' uppercase. Disabled state is saved on configuration
  • Added Symbol Table loading

Improved Hexadecimal editor:

  • Now the data is refreshed when the window has the focus too
  • Now the memory pointer can follow an expression (CPU register for example)

Improved ZX Vision:

  • More GUI improvements following more guidelines from the (retro)-specification IBM CUA
  • Menus show previous menus when selecting submenus
  • When selecting ZX Vision Style, it is applied on moving cursor
  • Improve cursor movement on menus when pressing PgDn/PgUp
  • Allow keys Home/End on windows
  • Added setting to allow use speccy keys for menu interaction: use keys 5678 as cursors, caps shift+space for ESC, caps shift+ctrl for TAB, caps shift+ctrl+m for Open Menu (F5)
  • Video layers window can now be backgrounded
  • Debug DMA window can now be backgrounded
  • Warn on the resize mark when a window has to be enlarged (because there is text beyond current size)
  • Allow a window to disable scroll actions
  • Process switcher is located at bottom-left part of the display by default
  • Now rainbow bars on windows title are visible on all GUI Styles when an error or splash message appears
  • Added a direct function to open Breakpoints window

Improved ZX Desktop:

  • Allow to enable/disable upper and lower buttons independently
  • Allow right click on the device icons located on the lower part of the ZX Desktop
  • Fixes:

Fixed ZX Vision:

  • Fixed right click on upper buttons when menu closed and no windows open
  • Fixed alt key pressed when changing to another window by using alt-tab on xwindow, cocoa, sdl1 and sdl2 drivers
  • Fixed recovering window position after restore/unminimize
  • Fixed bug reopening menu when executing run command on debug cpu and --allow-background-windows setting was disabled
  • Fixed text-to-speech on menu (bugs reading text on submenus and windows)
  • Fixed left clicking on an icon when menu was open

Fixed cpu+memory leak bug using Linux and Xwindow driver. This is a bug that has always existed (a "long life bug" XD)
Fixed ZX81 Online browser
Remove buffer full indicator when pressing shift+e on External Audio Source window
Fixed TZX autoload as Real Tape on Spectrum +3
Fixed inserting TZX file with invalid header type
Fixed saving .scr screen when located on RAM 7
Fixed esxdos handler call F_GETCWD when root directory (/)
Fixed esxdos handler call F_GETCWD when directory does not exist
Fixed hotswap ZX80 to ZX81, ZX81 to ZX80
Fixed Amstrad CPC Scroll
Fixed Cassette out sound: allow to hear it on computers: Jupiter Ace, CPC, MSX, Spectravideo
Fixed memory map and behaviour on Jupiter Ace: now it's perfect and better than any other emulator
Fixed loading .nex snapshots and Layer 2 not being initialized (fixes errors on Head Over Heels for Next, for example)
Fixed loading .nex snapshots and MMU not managed correctly
Fixed Search menu feature. Now it's enabled by default
Fixed bug saving .ZSF Z88 snapshot when RAM or Memory Card block is not compressed
Fixed showing footer message F5/Button menu
Fixed MSX keyclick sound
Fixed ZX-Uno write on addresses 0000h-3fffh when using Chloe MMU and segment is not ROM

  • As always, there are some other minor bugfixes and improvements

11.0

This version is dedicated to my brother David. Rest in peace.

  • New things added:

Added loading audio from external audio source, like a tape player. This also includes:

  • External Audio Source Window: you may see the audio wave, the signal type, and an azimuth assistant which tells you when you have to use the screwdriver ;)
  • Spectrum Analyzer (Audio Spectrum I mean): you may see full frequency range of the audio wave

Added ZENG Online feature, which allows you to play to any emulated game on a multiplayer way using a central server
Added ZENG support on all emulated machines
Added ZENG support on curses driver
Added save screen to .txt file
Added save screen to .stl file, useful to print on 3D Printer
Added support for ZX81 .P81 files
Added save support for ZX80 & ZX81 .Z81 snapshots
Added function to shift bits on Hex Editor
Added new compiled version: Haiku OS
Added TempleOS GUI Style
Added QNX GUI Style
Added setting to force CHR$ 128 mode on ZX81
Added search function to locate menu entries
Added .zmenu type files to generate launcher menus
Added more vintage Spectrum programs/games from me
Added Debug Sensors SPK & MIC Bit from port FEH
Added some tape copiers to Storage-> Tape menu
Added setting for fast welcome message
Added PCW Video mode 1 palette selector

  • Improvements:

Allow to load Next .nex/.snx/.sna snapshots with additional files without having to copy them on the mmc file (it mounts automatically the esxdos handler)
Allow to limit max cpu turbo on Next
Allow to pause playing on AY Player
Improved Keyboard Help: now you can press keys by clicking mouse
Allow to not save configuration when exiting ZEsarUX
Allow to select normal ZEsarUX logo or X Anniversary logo
Allow to send ZENG snapshots more frequently (even every 20 ms)
Allow autorewind setting for real tape too
Allow to disable Spectrum colours on real video mode too
Allow to press hotkeys at On Screen Keyboard
Remember last path used on output tape
Allow to load 48kB MSX cartridges
Allow to load MSX cartridges with memory mapper Ascii 8kb, Ascii 16kb, Konami without SCC, Konami with SCC, R-Type
Allow to set +2e/+3e rom from Custom rom menu item
Easier compilation on Haiku OS
Added setting to avoid Christmas Mode
Improve Hexadecimal editor on ZX80 and ZX81: show inverse characters

Improved ZRCP:

  • Added menu function to sync local snapshot to remote using ZRCP
  • Added ZRCP commands: open-menu, print-error, get-text-overlay, cpu-history get extended
  • Allow to use cpu-step-mode from ZRCP on drivers stdout and simpletext
  • Support MMU restore state on ZRCP command "cpu-history restore" for Spectrum 128k/+2/+2a/+3

Improved QL emulation:

  • Allow autoload when inserting QL mdv/flp
  • Show 2 microdrive and 1 floppy icon on QL, instead of just one icon
  • Allow to enable/disable every drive

Improved file selector:

  • Scrolling the current directory field if it does not fit on the window
  • Can change extension filter
  • When saving files, cursor is located at the file field, and a file name is suggested
  • File selection zone has a different color
  • Go up one directory when pressing left cursor key

Improved ZX Vision:

  • Changed left click mouse behaviour: when pressing left mouse button out of a window, it will close all menus.
    If you need to keep menu open and set focus on emulated machine, just left click and also press shift key.
  • Improve window title background when not all buttons are visible
  • Improve clicking and drawing an always visible window
  • Menus can no longer be minimized or resized (that had no sense)
  • Process switcher: unminimize windows when selecting them and they were minimized
  • Process switcher: now it can be set to be always visible
  • Process switcher: icon names are more descriptive
  • Menu titles are translated to selected language (not everything yet, please be patient)
  • Improve perspective for 3D Particles widget on View Sensors

Improved ZX Desktop:

  • Allow to set parameters when redefining upper buttons, for some actions like openwindow or set machine
  • Allow to reconfigure upper buttons by right clicking over them
  • When defining upper buttons or f-functions to SetMachine, machine name parameter is set to current machine
  • When creating new icon, upper buttons or f-functions of type OpenWindow, a window list is displayed to select
  • Can now show keyboard help from right click on machine icon
  • Fixes:

Fixed ZX Vision:

  • Fixed bug when printing on footer and column was out of bounds (exactly at column 32)
  • Fixed splash texts when row > 23
  • Fixed pressing keys '.' and ',' on menu when machine is ZX80 or ZX81
  • Fixed glitch on ZX Vision BeOS style, when pressing F5, window buttons didn't disappear or reappear
  • Fixed windows refresh after pressing F8 On Screen Keyboard
  • Fixed splash messages when background windows are enabled
  • Fixed initial position for many windows

Fixed http redirections when downloading using the Speccy Online Browser
Fixed bit 6 of FEH port depending on Issue2/3
Fixed Sam Coupe FEH sound port when enabling Real Beeper
Fixed segfault when trying to insert an unexistent Real Tape file
Fixed segfault inserting a ZX81 Real Tape and opening Tape Viewer
Fixed invalid Data Bus value on Jupiter Ace (it's 20H instead of FFH)
Fixed blockage when drawing Text Adventure Map and corrupted GAC adventure
Fixed timings of opcodes CP (HL), CP (IX+d), CP (IY+d)
Fixed bug on ZRCP when handling simultaneous connections
Fixed betadisk sector rollover reading/writing (thanks Mak7ym). Fixed loading for example of: BR_DEA7H, HOMER, PARADISE
Fixed bug when saving Clip Windows info on Spectrum Next ZSF snapshots
Fixed bug loading .nex snapshots with different header letter case (for example Exploding Fist Next)
Fixed reading kempston mouse when menu is open
Fixed memory size rom zone on ZX80 and ZX81
Fixed esxdos handler was enabled when machine is not Spectrum
Fixed high cpu usage when repeated splash messages about video mode changes

Auteur(s)

Auteur
chernandezba

Autres émulateurs de la catégorie

  • Provenance

    Dernière mise à jour:
    Version 3.0.6
  • Clock Signal (CLK)

    Dernière mise à jour:
    Version 2025-03-20
  • MAME

    Dernière mise à jour:
    Version 0.275
  • ZxPoly

    Dernière mise à jour:
    Version 2.3.4
  • Retro Virtual Machine

    Dernière mise à jour:
    Version 2.1.17
  • RetroArch

    Dernière mise à jour:
    Version 1.20
  • ares

    Dernière mise à jour:
    Version 143
  • ZXSP

    Dernière mise à jour:
    Version 0.8.34
  • Fuzzbug

    Dernière mise à jour:
    Version 0.0.5
